Network Diagram MCP Server

@den.dance/network-diagram-mcp

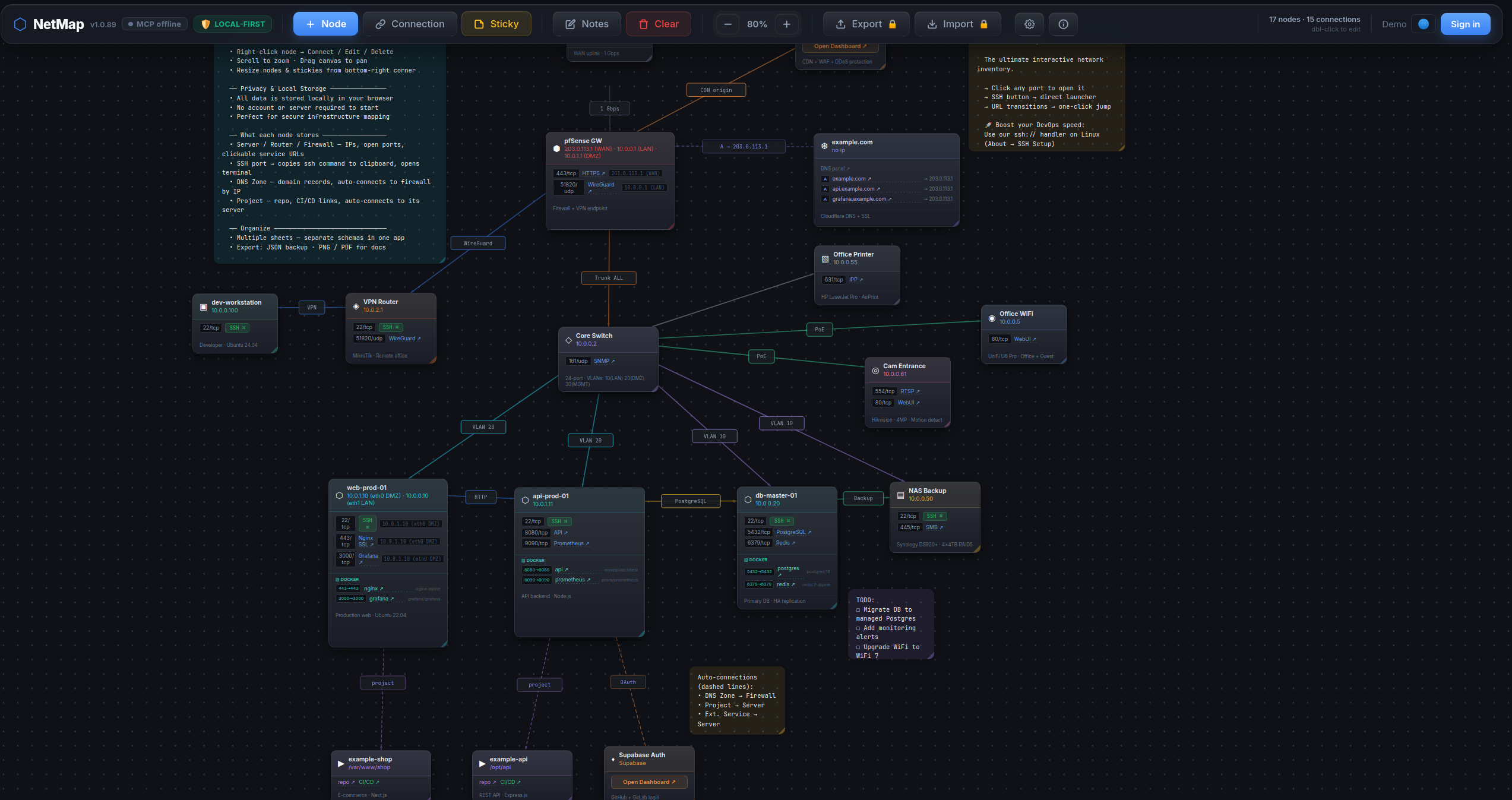

Visual network topology editor with AI agent integration via the Model Context Protocol. Open-source successor to netViz (netViz Inc., 1990 → CA Technologies → discontinued 2012).

Try it live → https://map.den.dance/

What makes it different

• One-click ops dashboard. Click any web port (80 / 443 / 8080 / …) on a node card to open the service in a new tab. Click an SSH / Postgres / Redis port → in-app picker offers your installed clients (iTerm / Windows Terminal / psql / DBeaver / redis-cli / RDM / …) and launches the one you choose. The picker re-detects every click — newly installed clients show up immediately, never a silent locked-in default.
• AI agents edit the map. 44 MCP tools — your Claude / Cursor / Claude Desktop session can build a diagram for you, search across nodes / ports / notes, run smart auto-layouts, export PNG / PDF — all by talking to the open browser tab.
• nmap -oX import. Run a network scan, hand the XML to the agent, get a map with nodes auto-typed from OS fingerprint + port profile (router / switch / firewall / server / printer / …).
• CSV inventory import. Drop in your asset spreadsheet — auto-detects columns (name / ip / type / ports / notes; aliases like hostname / description accepted).
• Operator-grade node cards. Per-node: open ports with service names, Docker services, DNS domains, free-form notes. All searchable cross-entity via the agent.
• Smart auto-layout. Force-directed (deterministic via seed), cluster-by-type, cluster-by-connection.
• Multi-sheet, local-first. Multiple maps in one workspace, everything in localStorage. No login, no cloud. Export JSON / PNG / PDF.

How it works

This package is a stdio → WebSocket bridge. It runs locally as an MCP server; the live NetMap browser tab connects to it over WebSocket. The agent talks to the bridge over MCP; the bridge forwards calls to the browser, which updates React state in real time.

LLM agent (Claude Code / Claude Desktop / Cursor)
   │  MCP protocol (stdio)
   ▼
@den.dance/network-diagram-mcp  ←  this package, runs locally
   │  WebSocket ws://localhost:47821
   ▼
NetMap in browser (https://map.den.dance/)  ←  React state updates live

⚠️ Requires an open NetMap browser tab. Open https://map.den.dance/ — the MCP bridge is enabled by default (v1.2+), so the connection comes up as soon as the tab is open. Without an open tab the bridge has no peer and every tool call will time out. (To opt out: Settings → ⚙ → Integrations → AI Agent (MCP) → Enable WebSocket connection.)

Install

Claude Desktop

Add to claude_desktop_config.json:

{
  "mcpServers": {
    "netmap": {
      "command": "npx",
      "args": ["@den.dance/network-diagram-mcp"]
    }
  }
}

Claude Code

claude mcp add netmap -- npx @den.dance/network-diagram-mcp

With a custom port:

claude mcp add netmap -e NETMAP_MCP_PORT=12345 -- npx @den.dance/network-diagram-mcp

Then open https://map.den.dance/ — the bridge is enabled by default (v1.2+). Settings → Integrations → AI Agent (MCP) if you need to inspect or toggle the connection. The toolbar will show a 🟢 MCP online badge when the browser and server are connected.

Verify the agent side:

claude mcp list

You should see netmap in the list.

Environment variables

URL Protocol Handlers + in-app client picker (v1.1+, picker since v1.2)

This package also ships an OS-level agent that registers handlers for ssh://, postgres://, and redis:// URLs. Click any such link in a browser or terminal and the agent spawns your installed client (psql / redis-cli / iTerm / Windows Terminal / kitty / DBeaver / TablePlus / RedisInsight / …).

Inside NetMap (v1.2+): when the serve daemon is running, clicking an SSH / Postgres / Redis port button on a node card opens an in-app picker of installed clients on your machine and launches the one you pick — every click re-detects, so newly installed clients show up immediately. Without the daemon, port-clicks fall back to the OS default URL handler.

Install once per machine:

# Linux:   ~/.local/share/applications/netmap-<scheme>-handler.desktop + xdg-mime
# macOS:   ~/Library/Application Support/NetMap/handlers/NetMap<Scheme>Handler.app + lsregister
# Windows: HKCU\Software\Classes\<scheme>  (per-user, no admin)
npx @den.dance/network-diagram-mcp install --all

Other CLI subcommands:

npx @den.dance/network-diagram-mcp install ssh        # single scheme
npx @den.dance/network-diagram-mcp uninstall postgres # remove registration
npx @den.dance/network-diagram-mcp list               # what's registered (JSON)
npx @den.dance/network-diagram-mcp detect ssh         # which clients are available
npx @den.dance/network-diagram-mcp serve              # daemon: WS + HTTP on :47821

Click handling is daemon-less — OS routes the link to a short-lived bin/handler.js process which parses the URL, picks the first installed client (priority order: CLI → popular GUI → cross-platform power), and spawns it. The optional serve daemon adds HTTP endpoints (/status, /detect, /exec) for browser-side integration with a Bearer-token-gated /exec.

npx @den.dance/network-diagram-mcp with no args still runs the original stdio MCP server (back-compat — Smithery / Claude Desktop probes are unaffected).

Top-5 clients per scheme (priority order, first-installed wins):

postgresql:// aliases to postgres; rediss:// is preserved and triggers redis-cli --tls.

Available tools

State & layout

Nodes

Connections

Sticky notes

Sheets (multi-sheet)

View / canvas

Lock / protection

Notes & settings

Search

Example — find everything matching postgres anywhere in the map:

// → call
{ "q": "postgres" }

// → result
{
  "nodes":       [{ "id": "n1", "name": "db-primary", "type": "server", "ip": "10.0.0.5" }],
  "stickies":    [{ "id": "s2", "text": "TODO: upgrade postgres 15 → 16" }],
  "connections": [{ "id": "c4", "label": "postgres replication", "from": "n1", "to": "n2" }],
  "ports":       [{ "nodeId": "n1", "nodeName": "db-primary", "port": 5432, "protocol": "tcp", "service": "postgresql" }],
  "total": 4
}

map_search and map_get_nodes_by_type are read-only — they work on locked sheets.

Import

Example — turn a 2-host nmap scan into a map in one call:

// → call
{
  "xml": "<?xml version=\"1.0\"?>\n<nmaprun>\n  <host>\n    <address addr=\"10.0.0.1\" addrtype=\"ipv4\"/>\n    <hostnames><hostname name=\"web.local\" type=\"user\"/></hostnames>\n    <ports>\n      <port protocol=\"tcp\" portid=\"22\"><state state=\"open\"/><service name=\"ssh\"/></port>\n      <port protocol=\"tcp\" portid=\"80\"><state state=\"open\"/><service name=\"http\"/></port>\n    </ports>\n  </host>\n  <host>\n    <address addr=\"10.0.0.2\" addrtype=\"ipv4\"/>\n    <os><osmatch name=\"Cisco IOS router\" accuracy=\"98\"/></os>\n  </host>\n</nmaprun>"
}

// → result
{ "count": 2, "ids": ["…", "…"] }

Provide {"hosts": [...]} instead of xml when you already have parsed host data — hosts takes priority when both are given.

Example — turn a CSV inventory snippet into a map:

// → call
{
  "csv": "name,ip,type,ports,notes\ndb-primary,10.0.0.5,server,\"22/tcp,5432/tcp\",Postgres 15\nrouter-main,10.0.0.1,router,22/tcp,Edge router"
}

// → result
{ "count": 2, "ids": ["…", "…"] }

For non-standard headers, pass an explicit columns mapping (-1 means "absent"):

{
  "csv":     "Host,Address\nfoo,10.0.0.99",
  "columns": { "name": 0, "ip": 1, "type": -1, "ports": -1, "notes": -1 }
}

map_import_nmap and map_import_csv are mutations — blocked on locked sheets.

Layout

map_suggest_layout repositions every node according to a chosen algorithm; result shape: { ok: true, algorithm, changed: <node count> }.

// Force-directed (organic; reproducible with seed)
{ "algorithm": "force", "iterations": 200, "seed": 42 }

// Group nodes into horizontal lanes by type
{ "algorithm": "cluster-by-type" }

// Place each connected component in its own x-zone
{ "algorithm": "cluster-by-connection" }

Force-directed is O(n²) per iteration — fine up to a few hundred nodes; bring iterations down for larger scenes. map_suggest_layout is a mutation — blocked on locked sheets.

Export (JSON / PNG / PDF)

// JSON
{ "format": "json" }
// → { format: "json", data: { nodes, connections, stickies, notes, auto_connections } }

// PNG (max 30 s; agent must persist the base64 to a file)
{ "format": "png" }
// → { format: "png", filename: "netmap-<sheetId>.png",
//      base64: "iVBORw0KGgoAAAANSUhEUg…",
//      mimeType: "image/png" }

// PDF
{ "format": "pdf" }
// → { format: "pdf", filename: "netmap-<sheetId>.pdf",
//      base64: "JVBERi0xLjQK…",
//      mimeType: "application/pdf" }

PNG / PDF capture renders the live workspace via html-to-image + jsPDF, so the MCP server raises the per-command timeout to 30 s for this tool. map_export is read-only — works on locked sheets.

Connection status indicator

A badge appears next to the NetMap version in the toolbar (click it to open Settings):

Detailed status (with URL and hints) is shown inside Settings → Integrations → AI Agent (MCP).

Running from source (for contributors)

git clone https://github.com/den-indance/network-diagram-mcp.git
cd network-diagram-mcp
npm install
node index.js

Override port: NETMAP_MCP_PORT=12345 node index.js.

Register the local build in Claude Code instead of npm:

claude mcp add netmap-dev -- node /absolute/path/to/network-diagram-mcp/index.js

License

MIT — see LICENSE.
